Overview

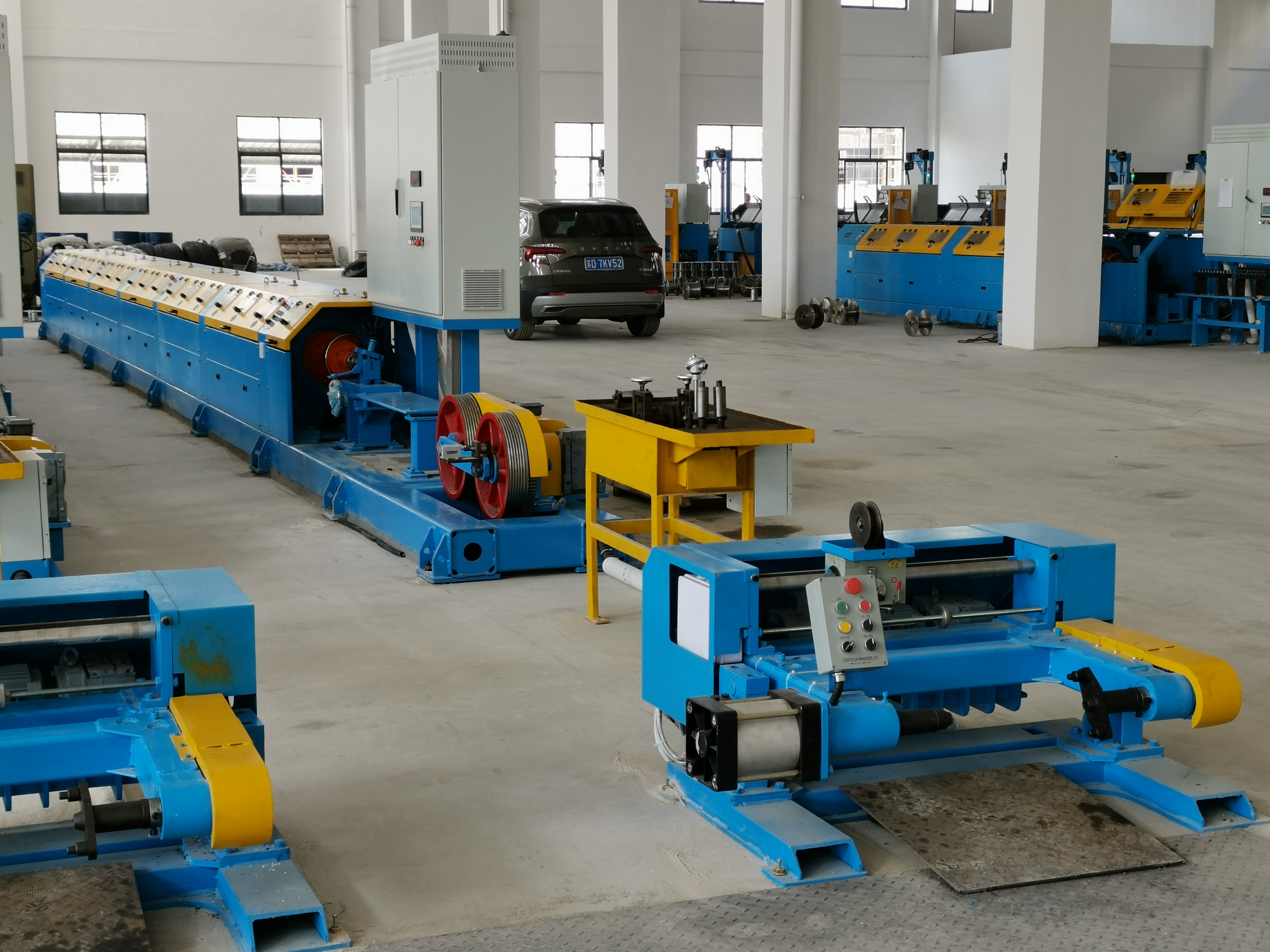

The Tubular Strander 250 is a high-speed stranding machine designed for the production of high carbon steel wire,ss wire,fine copper, aluminum, and alloy wires with a diameter range of 0.3 –1.2 mm. Equipped with a 250 mm bobbin, the machine adopts a tubular rotating structure that ensures tight and uniform stranding. It is especially suitable for the manufacturing of steel wire rope,precision cables, data cables, communication cables, and electronic wires.
Key Features
High-speed operation: Dynamic balance design allows stable running at speeds up to 1700 RPM.
250 mm bobbin design: Easy bobbin change, ensuring continuous production.
Precise tension control: Adjustable single-wire tension guarantees uniform stranding with reduced loose or broken wires.
Compact structure: Space-saving design, easy installation and maintenance.
Wide application: Ideal for data cables, coaxial cables, LAN cables, and other high-quality wire products.
Technical Parameters (for reference, adjustable based on configuration)
Applicable wire diameter: 0.3 – 1.2 mm
Bobbin size: 250 mm
Number of bobbins:6-36
Max. rotation speed: 1700 RPM(depending on model)
Stranding direction: forward/reverse selectable
Main motor power: X.X kW (depending on model)
Control system: PLC + HMI (touch screen)
Applications
Steel wire rope
Data cables
Communication cables
Coaxial cables
Electronic wires & fine conductors
