Tubular Stranding Machine

High speed tubular strander for steel wire rope(Stainless wire;Galvanized wire;Bright wire)

The Model of Tubular Stranding Machine

Tube Type Stranding Machine For Cu,Al and Steel wire Twisting

Features of our Tubular Stranding Machine

  Rigid rotor running supported by bearings at both ends
Encircled Bearings for Higher Speeds and More Stability of the Machine
Dynamic Balancing
Intermediate Encircled Bearings for Long Machines
High efficiency and speed
Line drive by A.C. motors with electronic or mechanical synchronization between line components
Centralized lubricating system
Disk type Pneumatic brake for Rotor designed for high speed stopping
HMI /PLC Equipped
Easy Lay Setting
Ergonomically designed Operator Control Station
Range of Takeups and Payoffs available
Wire Straightening Assembly and Pre Forming Heads

Technical Parameter

Model Input Wire Dia. Core Wire/Strand Dia. Output Strand Dia. Output Rope Dia.
100/6 0.05-0.25mm 0.05-0.25mm 0.72mm -
100/12 0.05-0.25mm 0.05-0.25mm 1.20mm -

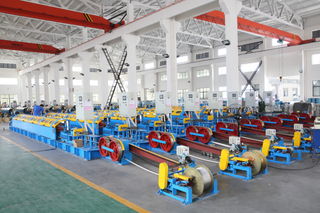

165/6 0.10-0.45mm 0.32-0.60mm 1.35mm 1.80mm
165/12 0.10-0.45mm 0.32-0.60mm 2.25mm -
165/18 0.10-0.45mm 0.32-0.60mm 2.80mm -
165/6 0.10-0.45mm 0.32-0.60mm 1.35mm 1.80mm
165/12 0.10-0.45mm 0.32-0.60mm 2.25mm -
165/18 0.10-0.45mm 0.32-0.60mm 2.80mm -

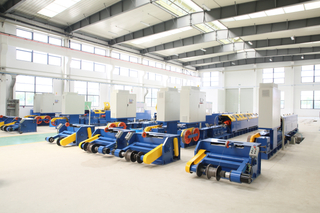

200/6 0.20-0.75mm 0.45-1.00mm 2.25mm 3.00mm
200/12 0.20-0.75mm 0.45-1.00mm 3.75mm -
200/18 0.20-0.75mm 0.45-1.00mm 5.25mm -
200/36 0.20-0.75mm 0.45-1.00mm 5.25mm -

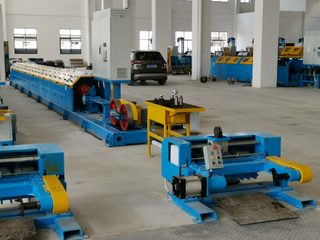

250/6 0.30-1.20mm 0.60-1.50mm 3.60mm 4.50mm
250/12 0.30-1.20mm 0.60-1.50mm 6.00mm -
250/18 0.30-1.20mm 0.60-1.50mm 8.40mm -
250/36 0.30-1.20mm 0.60-1.50mm 8.40mm -
300/6 0.40-1.40mm 0.80-2.00mm 4.20mm 6.00mm
300/12 0.40-1.40mm 0.80-2.00mm 7.00mm -
300/18 0.40-1.40mm 0.80-2.00mm 9.80mm -
300/36 0.40-1.40mm 0.80-2.00mm 9.80mm -
400/6 0.60-2.00mm 1.00-3.00mm 6.00mm 9.00mm
400/12 0.60-2.00mm 1.00-3.00mm 10.00mm -
400/18 0.60-2.00mm 1.00-3.00mm 14.00mm -
400/36 0.60-2.00mm 1.00-3.00mm 14.00mm -
500/6 0.85-3.00mm 1.20-4.50mm 9.00mm 13.50
500/12 0.85-3.00mm 1.20-4.50mm 15.00mm -
500/18 0.85-3.00mm 1.20-4.50mm 18.00mm -
500/36 0.85-3.00mm 1.20-4.50mm 18.00mm -
630/6 1.40-4.50mm 1.40-4.50mm 13.50mm 18.00
630/12 1.40-4.50mm 1.40-4.50mm 22.50mm -

Our Equipment is Suitable For Production：

RANGE OF APPLICATION

Running Work Video of Cigar Type Stranding Machine

Commonly Asked Questions

What kind of cable machinery you need?

    What are the advantages of stranding conductor?

    A
    Stranded wire conductors are preferred for: Conductor flexibility is much greater in stranded conductors, making them easier to install. Flex life is longer compared to solid conductors. Stranded conductors can endure more vibration and bending before reaching the breaki

  • What are the different types of stranding machines?

    Rigid Type Stranding Machine,rigid stranding machine,wire stranding machine|RLB.

  • What is the function of the stranding machine?


    Basket Type Stranding Machine is mainly used to strand not only copper/aluminum conductor for the electric wire and cable but also the cable core, steel core, and steel rope.

  • What is tubular stranding machine?

    Tubular stranding machine 1+6+12 reels - INTECH Italy
    The purpose of the tubular stranding machine is to obtain cables of braided wires, starting from the individual coils with single conductor diameter up to 4 mm. The line consists of two groups: a 6-coil tubular and a 12-coil tubular.
